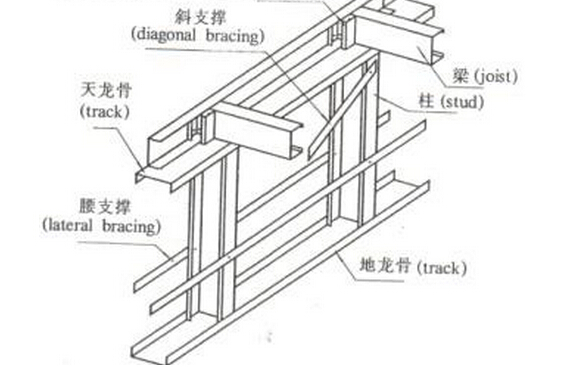

Drywall partition stud and track roll forming machine is used to make drywall partition.
usually people is familiar with c and u,atually that are stud and track.Stud with punching for electrical wiring.
One machine can make c and u both with different sizes,bu changing spacers.It is very easy to operate,
1)Material:hot dipped galvanized coil,galvalume steel
2)Thickness of material:0.35-0.7mm
3)Yield strength:235-340mpa
4)Width of material:
C type → 49.5*36mm:133mm C type → 69.5*39.5mm:160mm
U type →50.5*26mm:101mm U type → 70.5*31mm:131mm
5)Sizes of imposing:
Bottom sizes:0.5*0.5mm(square)
Top sizes:1.0*1.0mm(square)
Main technical conditions of the forming line:
Temperature:-10ºC~35ºC
Voltage:380V,50HZ,3P(or according to customer request)
Air pressure:0.6~1.2Mpa
Total Power:≈21kw
Color:
Production capacity:0-50meters/min(without punching,no stop cutting)
0-30meters/min(with punching,no stop cutting)
Dimension (L*W*H): L≈ 5.3 m, W≈ 0.9 m, H≈ 1.5 m
Specification of the shipping container:(the number is pre-estimated ≈, final data should be confirmed in two weeks before delivery.)
|
|
|
|
|
