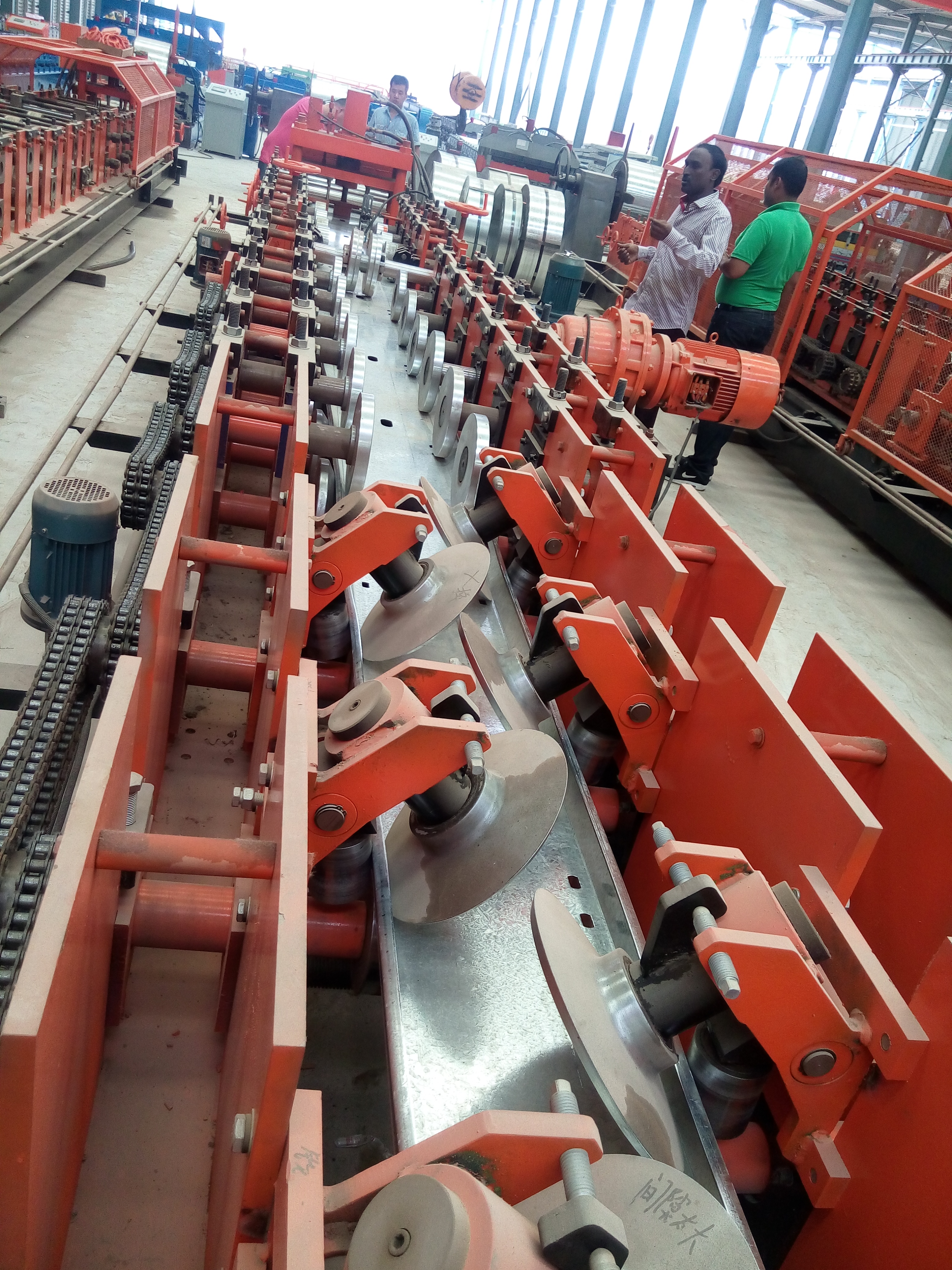

Myanmar came to inspect automatic s purlin machine.
Fully automatic machine means that when you want to changes sizes of c purlin from 80-300,no need worker.Just press the button,the machine will work on it own.
Our auto c purlin forming machine is composed of manua decoiler,feeding,forming,punching and cutting device.
Supplying components of complete machine
|
NO. |
Description |
Quantity (set) |
Remark |
|
1 |
SINGLE ARM 5Tmanual decoiler |
1 |
|
|
2 |
Guiding device |
1 |
One complete unit as main machine |
|
3 |
Punching device |
1 |
|
|
3 |
Forming system |
1 |
|
|
4 |
Transmission system |
1 |
|
|
5 |
Hydraulic guillotine |
1 |
|
|
6 |
Support table |
2 |
|
|
7 |
Hydraulic station |
1 |
|
|
8 |
Control box |
1 |
|
|
9 |
Spare parts and tools |
1 |
As attaching list |
General parameters
|
No |
Item |
Parameter |
Note |
|
1 |
Forming Speed |
Max20m/min(witout punching) 13-14meters/min(with pucning,depend on punching holes) |
Depend on quantity of punching |
|
2 |
Forming station |
Around 18 groups with correction rollers |
|
|
3 |
Total Power |
Main power 22 KW, |
|
|
\4 |
Total Weight |
About 9500KGS |
|
|
5 |
Voltage |
380v,50hz,3p |
|
|
6 |
Diameter of shaft |
80mm |
|
|
5 |
Installation Size |
14 * 1.0 M*1.5 |
|
Main parts material
|
No |
Item |
Parameter |
Note |
|
1 |
Forming Shaft |
45# steel with grinding process |
|
|
2 |
Forming Roller |
GCR15 with heat treatment |
|
|
3 |
Cutting Blade |
Cr12 with hard treatment |
|
|
4 |
Control System |
DELTA PLC& transducer, others are Chint etc. |
|
|
5 |
Electrical motor |
China quality brand |
|
|
6 |
Bearing |
China quality brand |
|
|
7 |
Chain |
China quality brand |
|
|
8 |
Hydraulic parts |
China quality brand |
